日均混料量

Average daily mixing volume

根据客户需求

According to customer requirements

填料包装规格

Package specifications

25Kg / 半吨包 / 吨包

25Kg/Half-Ton bag/Ton bag

树脂固化剂包装规格

Resin hardener packaging specifications

18/200/1000L

填料干燥罐有效容量

Effective Capacity of filler drying tank

300/600/1000/2000L

备料罐有效容量

Effective Capacity of material preparation tank

100/150/200/300/500/800L

浇注速度

Casting speed

1-15Kg/min

浇注阀移动方式

Movement mode of casting valve

固定式 / 固定半径旋转式 / 双伺服驱动式 / Y 方向移动方式

Fixed type/Fixed rotary radius moving type/Dual servo drive type/Y-direction movement mode

浇注罐规格

Specification of casting tank

单仓单门式 / 双门隧道式 / 三仓式

Single-compartment type/Double-door tunnel type/Three-compartment type

上料方式

Material loading method

树脂 18L 倒料溶解、固化剂真空吸入、填料吨包解袋无尘上料

Resin (18L) pouring and dissolving, hardener sucked in under vacuum, small package of filler unpacking dust-proof

计量方式

Measuring method

立式伺服计量泵

Vertical servo dosing pump

圆罐尺寸

Dimensions of round tank

内径 3000× 桶长 3500mm / 内径 3500× 桶长 4000mm

Chamber inner diameter 3000mm X Barrel length 3500mm/Chamber inner diameter 3500mm X Barrel length 4000mm

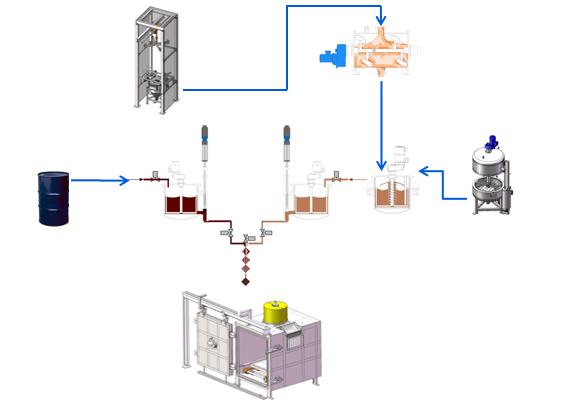

材料备料

Material preparation

自动计量配料，单组份料真空下伞形薄膜脱气；在线配料

Dosing automatically, umbrella thin-film degassing; online ingredients

清洗装置

Cleaning device

单组份树脂清洗 / 热压压缩空气清洗

Cleaning and scour by single component of resin/Hot press compressed air cleaning
